How to adjust the pressure on a water pump: comprehensive guide

When planning a water system, be sure to choose the right equipment and also understand how to adjust the pressure on a water pump to keep all components running smoothly and maintain the right hydraulic balance.
With years of experience in water pump sales, our experts at Streamline Pump Solutions have put together this article to help homeowners and professionals carry out a pressure adjustment and fine-tune your system.

Key Takeaways

• Сorrect settings can prevent unnecessary pressure drops, minimise pump cycling, improve the efficiency of all system components and water supply zones, and ensure a consistent, optimal flow rate at every outlet. Refer to the manufacturer’s guidelines or contact our specialists for accurate advice and specific figures tailored to your system.
• Identifying the type of pressure control system is key to selecting the right settings. It may be an automatic controller  ( with a single screw to set the start pressure) or a mechanical pressure (switch contains internal springs for pressure cut-in/cut-out points).
• Properly adjusted pressure is an essential part of overall water system maintenance. Regularly check and make pressure switch calibration to maintain a strong and steady water flow over the long term. This step shouldn’t be overlooked — experienced professionals know just how much it impacts the lifespan and performance of equipment like variable speed pumps or multistage pumps.

How to Adjust an Automatic Water Pump Pressure Controller

Let’s take a quick look at how to adjust an automatic water pump pressure controller.

It’s an electronic unit that operates without direct mechanical interaction from the user: the screw raises or lowers the settings, monitored by the built-in pressure gauge.

Here’s what you need to do:

1. Turn off the power at the item.
2. Check the current settings.
3. Adjust the tension as needed.
4. Monitor the results.

After all, restore and test the system: open a tap and watch the pressure kick back in.

• If the item has a pressure tank, make sure it is about 0.2 bar below the new pump cut-in pressure.
• If the setup doesn’t shut off automatically when the flow stops, check the control valve.

In situations where consistent high pressure is needed, consider using more advanced options: variable speed pumps with increased power or multistage pumps, which can deliver more effective pressure.

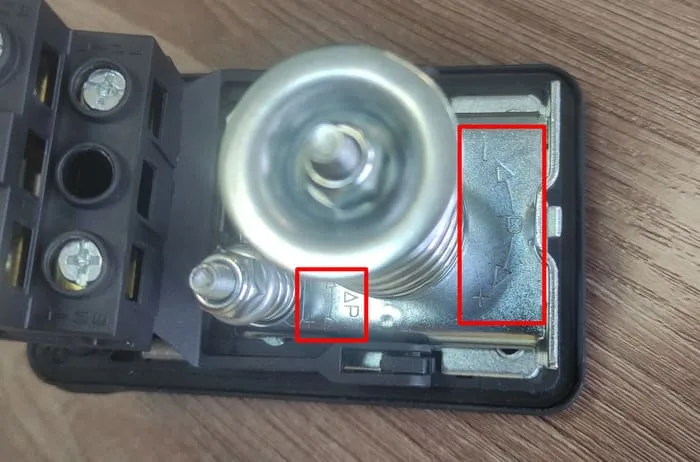

How to Adjust the Pressure Switch on a Water Pump

Now let’s take a look at how to adjust the pressure switch on a water item.

This task requires more knowledge and hands-on skill, as you’ll need to open the switch cover, access the contact points and adjustment nuts, and manually set the pressure grades.

Steps to follow:

1. Turn off the power.
2. Use the large nut to change both cut-in and cut-out pressure. Tighten to raise, loosen to lower. The small one controls the gap between them — tighten to increase the difference, loosen to reduce it.
3. Check the pressure meter to ensure the correct PSI range.
4. Control the air tension.
5. Run a test. Make sure the regulator or check valves are working in sync with the pump’s new settings.

FAQ

Conclusion

In this blog article, we’ve covered how to adjust an automatic water pump pressure controller and how to adjust the pressure switch on a water pump, with clear steps for both. The key is to work carefully and follow the process step by step.If you’re unsure about the process, get in touch with Streamline Pump Solutions. We offer a great range of advanced pressure pumps available across Australia, along with expert advice on selecting, installing, and maintaining systems of any type, size, or capacity. Check also New Zealand Opinion Polls
