Reefe RBK0710 | 40L/min 63m hd
$1,617.99
- Streamline Pump Solutions – Official Distributor of Reefe
- Free shipping on all orders over $149
- Estimated delivery within 3-5 business days
- 30-day returns online and in-store
- After-sales manufacture technical support
Description

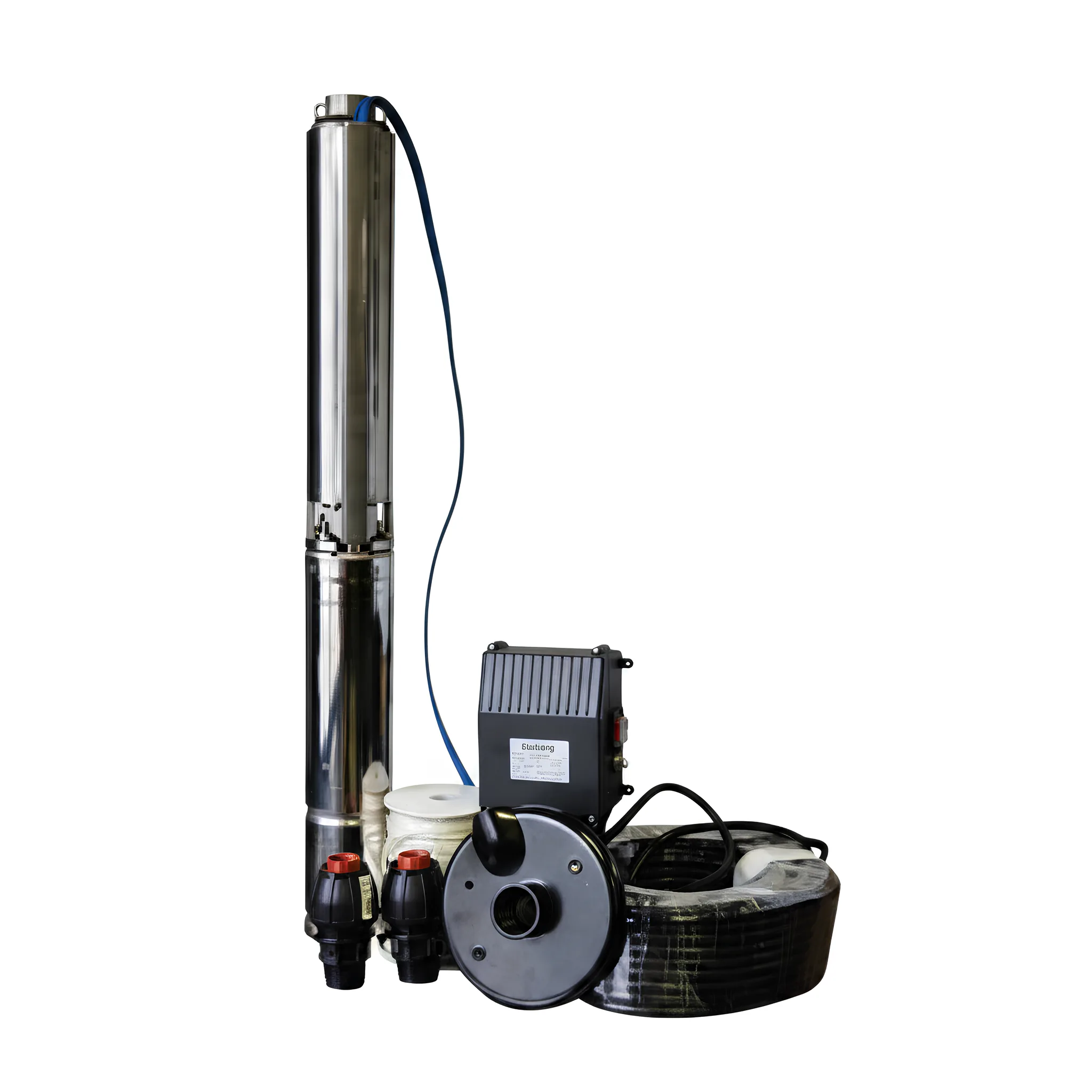

Stainless steel 4″ submersible bore pump kit ideal for deep well water supply, stock watering, irrigation and tank filling. Includes 50m of submersible cable, safety rope, bore cap and start controller for quick plug-and-play installation. These systems are recommended for domestic, rural and agricultural applications.
Specifications
| Attribute | Value |
|---|---|
| CODE | 34965 |
| MODEL | RBK0710 |
| PUMP DIA | 4″ |
| AMPS | 3.7 (run) / 12 (start) |
| HP | 0.5 |
| P2 | 0.37 kW |
| OUTLET SIZE | 1¼″ / 32mm |
| MAXIMUM FLOW | 40 L/min |
| MAXIMUM HEAD | 63m |
| CABLE LENGTH | 50m |
| PUMP SIZE (D × H mm) | 101 × 101 × 676 |
| VOLTAGE | 240V |
Features
- Standard 4” NEMA motor mount for convenience for future serving
- S1 Continuously rated motors for peace of mind on long pumping applications. (rated for 25 starts per hour)
- Each unit is 100% tested for peace of mind, quality control
- Ready to install, plug in play design to maximise time saving on setup
- Corrosion resistant SS for a lasting investment
- Starting method is via a permanent split capacitor – external for convenient servicing
- Supplied with Australian-made Plasson pull out resistant fittings, specifically designed for easy install
Construction
- Grade 304 Stainless Steel discharge head, outer casing, suction screen,
suction connector, pump shaft, coupling and motor shell - Ceramic / Carbon mechanical seal
- Diaphragm and Oil seal in NBR
- Noryl impeller with glass reinforced polycarbonate diffuser
- Built-in check valve
- Insulation Class F with built-in thermal overload protector
- Ingress Protection IP68 maximum immersion rating to 200m ensuring capacity far beyond the design application
Applications
Specifications
| Dimensions | 10 × 10 × 67 cm |
|---|
Features
- Standard 4” NEMA motor mount for convenience for future serving
- S1 Continuously rated motors for peace of mind on long pumping applications. (rated for 25 starts per hour)
- Each unit is 100% tested for peace of mind, quality control
- Ready to install, plug in play design to maximise time saving on setup
- Corrosion resistant SS for a lasting investment
- Starting method is via a permanent split capacitor – external for convenient servicing
- Supplied with Australian-made Plasson pull out resistant fittings, specifically designed for easy install
Construction
- Grade 304 Stainless Steel discharge head, outer casing, suction screen,
suction connector, pump shaft, coupling and motor shell - Ceramic / Carbon mechanical seal
- Diaphragm and Oil seal in NBR
- Noryl impeller with glass reinforced polycarbonate diffuser
- Built-in check valve
- Insulation Class F with built-in thermal overload protector
- Ingress Protection IP68 maximum immersion rating to 200m ensuring capacity far beyond the design application
Applications
